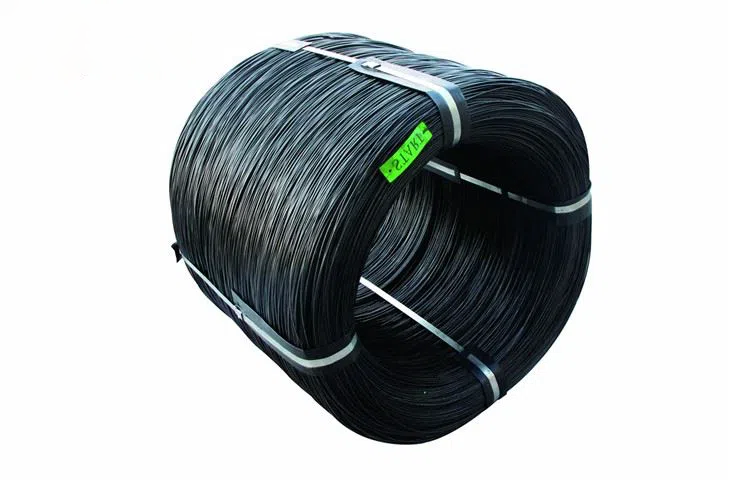

Black Annealed Wire Packaging Line
| MATERIAL | WIRE | TENSILE STRENGTH | 500-1100(MPA) |
| CROSS-SECTIONAL SHAPE | ROUND | APPLICATION | CHRISTMAS TREE, FLATTENING, CABLE, SILK FLOWER BRANCHES AND RODS, FRUIT BAGS, VAPOR FILTER MESH, DEEP PROCESSING OF WIRE MESH |
| CROSS-SECTIONAL SIZE | 1.6-12.5(MM) | BRAND | MJH |
Features:Black annealed wire is softer and more flexible than ordinary black iron wire, with uniform softness and color consistency.
Advantage
1. Factory supply, sufficient stock of various types
2. Solid material, reliable quality, not easy to break
3. Complete specifications, support customization.
4. Beautiful appearance, delicate and luster.
5. Good flexibility, firm bundling
Additional Info
Diameter Range: 1.60-12.50 mm
Diameter Range: 1.90-12.50 mm
Diameter Range: 4.00-7.80 mm
Hard Drawn Low Carbon Wire Specifications
Diameter Properties
Hard Drawn Low Carbon Wire is manufactured to comply with the following diameter tolerances:
| Nominal Wire Diameter | Tolerance (mm) |
| 1.60mm up to and incl. 1.80mm | +/- 0.02 |
| over 1.80mm up to an incl. 2.80mm | +/- 0.03 |
| over 2.80mm up to and incl. 5.00mm | +/- 0.03 |
| over 5.00mm up to and incl. 8.00mm | +/- 0.03 |
Tensile Strength (MPa)
The tensile strength is defined as the maximum load achieved in the tensile test, divided by the cross-sectional area of the wire test. The tensile strength developed depends on the amount of reduction in area to the finished size. Tensile is not considered of prime importance to this product however the following table is given as a general guide:
| Nominal Wire Diameter | Tensile Range (Mpa) |
| less than or equal to 1.75mm | 800/1100 |
| over 1.75mm up to and incl. 2.00mm | 750/1050 |
| over 2.00mm up to and incl. 2.24mm | 700/1000 |
| over 2.24mm up to and incl. 2.70mm | 650/950 |
| over 2.70mm up to and incl. 2.80mm | 600/900 |
| over 2.80mm up to and incl. 4.20mm | 550/850 |
| over 4.20mm up to and incl. 10.00mm | 500/800 |
| over 10.00mm up to and incl. 11.50mm | 450/750 |
| over 11.50mm up to and incl. 12.50mm | 500/800 |
Steel Chemistry
OneSteel uses a variety of steel grades to manufacture its Hard Drawn Low Carbon range. The table below is indicative only of steel chemistries used.
| - | HDLC | Truform | Hiform |
| % Carbon% Phosphorus% Manganese% Silicon
% Sulphur |
0.04 – 0.070.03 max0.40 – 0.600.12 – 0.22
0.03 max |
0.05 max0.03 max0.50 max0.12 – 0.18
0.03 max |
0.06 max0.04 max0.25 – 0.500.05 max
0.04 max |
Black annealed wire is coated with a corresponding rust-resistant coating formed on top of the iron material, which can largely reduce the possibility of rusting and enhance the overall effectiveness of the user’s use.
The annealed wire itself is very bright, without a trace of color unevenness, the plating is very complete and aesthetically pleasing, the value of the face is far more than other types of annealed products. In addition, the flexibility of the product is also very strong, itself after pickling, drawing, galvanizing and other processes made, the overall coating is strong, high hardness, very long life cycle.
Of course, the black annealed wire is very adaptable to acid and alkali materials, and the plating itself is not easy to fall off, so it will not rust. In addition, it can resist the attack of acid and alkali materials, and has a wide range of applications in construction, highway, chemical industry, welded wire mesh, etc.
There are many manufacturers producing this type of annealed wire, but the quality varies. If you have a need, you can contact us, our factory is engaged in the production and sales of this type of products all year round, and can meet your long-term use.
FAQ
Q: Manufacturer or Trader?
A: We are manufacturer in wire industry for more than 30 years.
There are 10 factories and 1 trading company under our group.
Q: Producing Capacity?
A: The producing capacity totally is 9,000 tons per month.It also up to the different products.
Q: What certificates does my factory have?
A:ISO 9001; ISO/TS 16949; KS; JIS etc
Q: Main Market?
A: 80% of our products do exports. The main countries are Japan, South Korea, South Asian area, Europe, America, Canada, and South America etc.
