GALFAN WIRE FACTORY ZN-AL 5%-10%

Short Description:

Material: : Q195/Q235/SAE1006/SAE1008

Wire Diameter: : 1.20mm-6.00mm(BWG 3-18)

Wire Tolerance: : ±0.03mm

Zinc Coating: : 30-600g/㎡

AL: : >5% or >10%

Tensile Strength: : 350-550MPA/450-550MPA(As your requirement)

Packing: : Coils(500-1000kgs),Spools

Standard: : ASTM,BS,DIN,GB,JIS

Application: : Gabion wire mesh, Gabion Box, Fence, Wire Rope etc.

Port: : Tianjin Xingang Port, China

Production Capacity: : 2000 Tons/Month

Moq: : 1 Ton

Payment Terms: : T/T, L/C,D/P

Special USE:: high tensile strength steel wire

Send email to us Download as PDF

Product Detail

Product Tags

Sr.No. 1	2.20 mm diameter of wire - Galfan
	1 Tensile Strength 350-500 N/MM2 EN 10223/ EN 10244
	2 Tensile Elongation 10% Minimum EN 10223/ EN 10244
	3 Diameter of wire 2.2mm (+/-) 0.06 EN 10223/ EN 10244
	4 Zinc Coating on wire (90% Zn +10% Al) 230 GSM Minimum EN 10223/ EN 10244
	5 Zinc Adhesions on wire Zinc shall not crack during testing of wire NA (Visual Observation) EN 10223/ EN 10244
Sr.No. 2	2.70 mm diameter of wire - Galfan
	1 Tensile Strength 350-500 N/MM2 EN 10223/ EN 10244
	2 Tensile Elongation 10% Minimum EN 10223/ EN 10244
	3 Diameter of wire 2.7 (+/-) 0.06MM EN 10223/ EN 10244
	4 Zinc Coating on wire (90% Zn +10% Al) 245 GSM Minimum EN 10223/ EN 10244
	5 Zinc Adhesions on wire Zinc shall not crack during testing of wire NA (Visual Observation) EN 10223/ EN 10244
Sr.No. 3	3.4 mm diameter of wire - Galfan
	1 Tensile Strength 350 - 500 N/MM2 EN 10223/ EN 10244
	2 Tensile Elongation 10% Minimum EN 10223/ EN 10244
	3 Diameter of wire 3.4MM (+/-) 0.07 MM EN 10223/ EN 10244
	4 Zinc Coating on wire (90% Zn +10% Al) 265 GSM Minimum EN 10223/ EN 10244
	5 Zinc Adhesions on wire Zinc shall not crack during testing of wire NA (Visual Observation) EN 10223/ EN 10244

China Galfan wire is covered with Zn-Al (Al 5%, Zn 95% or Al 10%, Zn 90%) alloy.Zn-Al alloy steel wire has strong corrosion resistance and self-healing capacity,and it's crossion resistance capacity is 5-10 times that of common pure galvanized steel wire.

1>Longer service life than galvanized wire.

2>Longest corrosion resistance espacially for

over 360g coating thickness.

3>Good ductility.

4>Low carbon wire and high tensile strength,

small tolerance,Shiny surface.

5>Large orders enjoy special discount.

High Tensile Strength Galvanized Steel Wire, Hot Dip Wire

Specifications

Coating material: Zinc and aluminum alloy (Al 5%, Zn 95% or Al 10%, Zn 90%)
Wire diameter: 1.2 mm – 8.0 mm
Tensile strength: 350-550 MPA,450-550MPA,1290 MPa – 1340 MPa(As request)
Packing: spool or coil wrapped with moisture-proof paper or plastic film.

Applications

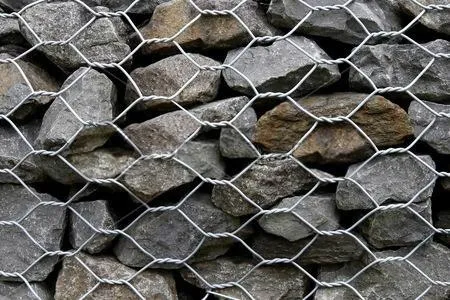

Be made into gabion baskets and gabion wire mesh.
Be made into galfan tecco mesh
Be woven or welded into sheets for outdoor fences/Fencing.
Be used in chemical equipments, marine shipbuilding industry.

Hot Wire Sizes for Gabion Wire Mesh:

Wire Dia. :mm	Wire Tolerance: mm	Zinc Coating: g/㎡	AL:%	Elongation: %	Packing: Kg
2.00mm	±0.03mm	230	>10%	>10%	500
2.20mm	±0.03mm	230	>10%	>10%	500
2.70mm	±0.03mm	245	>10%	>10%	500
3.00mm	±0.03mm	245	>10%	>10%	500
3.40mm	±0.03mm	260	>10%	>10%	500

Why choice 10% Galfan (90%zinc + 10% al alloy) wire as the gabion material? Corrosion Resistance: Galfan wire corrosion resistance of about 2.5 – 3 times the galvanized steel wire. Air Oxidation: Galvanized steel wire with time changes, the surface gradually become gray due to oxidation; Galfan wire with time changes, the surface gradually become black due to oxidation. The key difference is that the oxidation of the surface of the galvanized steel wire will reduce the useful life of the gabion, and the oxidation of the Galfan wire will increase the useful life of the gabion.
