Galvanized Barbed Wire

Short Description:

Barbed wire Material:low carbon wire ,galvanized wire ,PVC coated wire Weaving :Twist Characteristic:inforce and beauty Usage:used in the protecting of industry ,farming,stockbreeding,highway and forestry centre


Product Detail

Product Tags

Barbed wire is twisted and braided by fully automated barbed wire machines. Popularly known as thistles, barbed wire, barbed wire. Finished product types: single wire twisting and double wire twisting. Raw material: high quality low carbon steel wire. Surface treatment process: electro-galvanized, hot-dip galvanized, plastic coated, plastic sprayed. Available in blue, green, yellow and other colors. Use: Used for pasture boundary, railroad, highway isolation protection, etc.

Type Wire Gauge Barb distance(cm) Barb length(cm)
Electro galvanized barbed wire; 10# x 12# 7.5–15 1.5–3
Hot dipped galvanized barbed wire 12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#
PVC coated barbed wire; Before coating After coating 7.5–15 1.5–3
PE barbed wire 1.0mm–3.5mm 1.4mm–4.0mm
BWG11#–20# BWG8#–17#
BWG11#–20# BWG8#–17#
PVC PE coating thickness :0.4mm–0.6mm,different colors of length are available at sustomers request

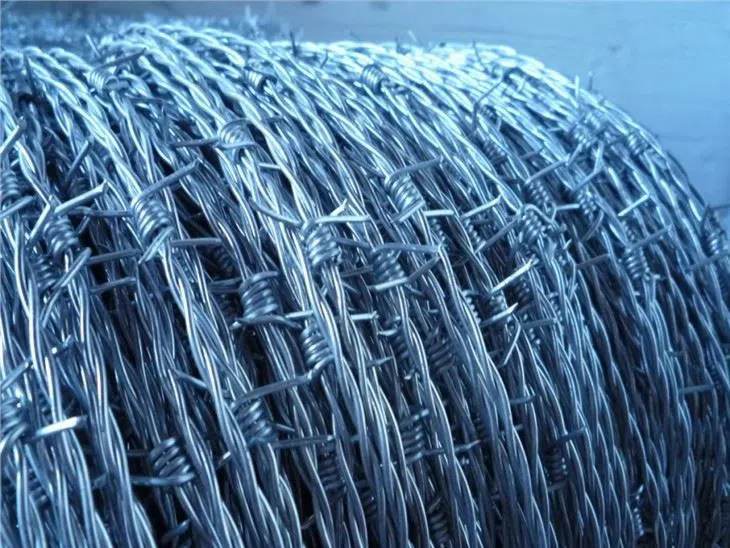

Galvanized Barbed Wire is an isolation protection net made by barbed wire machinery by winding barbed wire on top of the main wire (strand wire) through various weaving processes.
Barbed wire is twisted in three ways: forward twist, reverse twist, forward and reverse twist.
Forward twisting method: it is to twist two wires or more wires into double strands of wire rope and then twist the barbed wire around the double strands of wire.
Reverse twist method: is the first barbed wire wrapped in the main wire (that is, a single wire) and then add a wire and the twisted braided together into a double-stranded barbed wire.
Forward and reverse twisting method: It is twisted in the opposite direction from the place where the barbed wire is wrapped around the main wire. Not twist in one direction.

Barbed Wire
