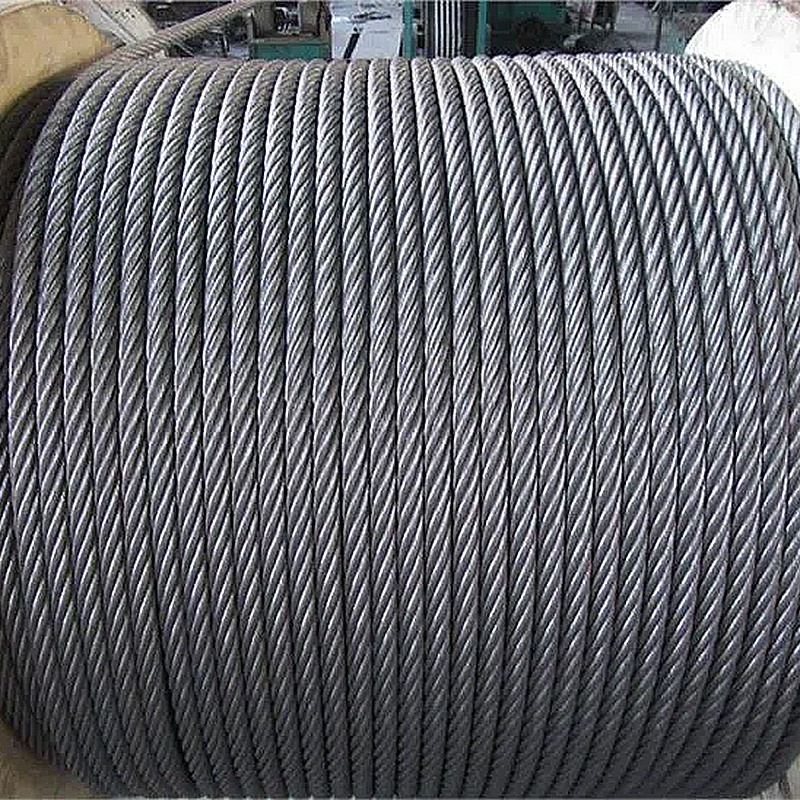

China Steel Wire Ropes 6*24 factory and suppliers

Steel Wire Ropes 6*24

Short Description:

The steel wire is made of high-quality carbon steel, which can achieve high strength after repeated cold drawing and heat treatment. Workplaces such as wet or open air environments can use wire ropes twisted from galvanized steel wires to enhance rust resistance.
Steel wire ropes are mainly used in hoisting, pulling and other transportation that require high-strength wire ropes.

Send email to us Download as PDF

Product Detail

Product Tags

Product information:

Specification:

Diameter	Steel Area	Min. breaking force	Weight
mm	mm²	kN	kg/100m
		1770 N/mm²
6	11.6	17.9	11
8	20.6	31.8	20
10	32.2	49.6	32
12	46.4	71.4	46
14	63.1	97.2	62
16	82.4	127	81
18	104	161	103
20	129	198	127
22	156	240	154

Nominal diameter		Approximate weight	Nominal strength for wire rope(MPa)
of steel wore rope		of steel wire rope	1470	1570	1670
Diameter	Allowable tolerance	Natural fiber cored wire rope	The Minimum breaking
Diameter	Allowable tolerance	Natural fiber cored wire rope	force of steel wire rope
(mm)	(%)	(kg/100m)	(kN)
6	7	11
8		20.4	26.3	28.1	29.9
9		25.8	33.3	35.6	37.8
10		31.8	41.1	43.9	46.7
11		38.5	49.8	53.1	56.5
12		45.8	59.2	63.3	67.3
13		53.7	69.5	74.2	79
14		62.3	80.6	86.1	91.6
16		81.4	105	112	119
18		103	133	142	151
20		127	164	175	187
22		154	199	212	226
24		183	237	253	269
26		215	278	297	316
28		249	322	344	366

Features:

1. Steel wire ropes can transmit loads over long distances.

2. The bearing safety factor is large, and the use is safe and reliable.

3. Light weight, easy to carry and transport.

4. Can withstand a variety of loads and variable loads.

5. Has high tensile strength, fatigue strength and impact toughness.

6. Under high-speed working conditions, it has good wear resistance, shock resistance and good running stability.

7. It has good corrosion resistance and can work normally in harsh environments with various harmful media.

8. Good softness, suitable for traction, pulling, bundling and other purposes.

Steel Chemistry:

A combination of steel grades is used and heat treatment processes to manufacture soft, medium and hard tensile grades. The table below is indicative only of steel chemistries used.

Tensile Grade	% Carbon	% Phosphorus	% Manganese	% Silicon	% Sulphur
Standard	0.45~0.50	0.032	0.5 ~1.00	0.10~0.34	0.041
High	0.59~0.63	0.035	0.5 ~1.10	0.10~0.35	0.045
Extra-High	0.65~0.83	0.035	0.5 ~1.10	0.10~0.35	0.045

Quality Control:

We use total quality control system. Every pieces of the raw material; semi-finished products and finished products are tested and recorded in file. The tracking record is used from final products to the very first beginning raw material steel factories.

Third Part like SGS is available for test control before shipment

Packing:
1) All the products are packed with seaworthy packing.
2) Customer’s special requirement for packing can be satisfied.
3) Air freight; sea freight and truck freight are all available.
